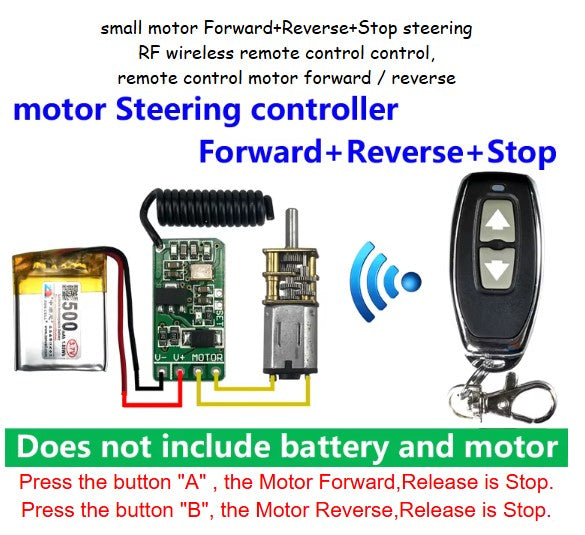

433MHz Wireless Remote Control Switch DC 3.7v 4V 6V N20 Mini Micro Motor Gearwheel Forward Reverse steering module electric lock

♻️Receive controller parameters:

1. Working voltage: DC 3.7V to 12V (wide voltage universal)

2. Standby current : About 0.3 mAh

3. Working current:About 6 mA

4. Maximum load current: less than 1A

(less than 4 watts of equipment)

5. Working frequency: 433mhz

6. Output voltage:  Consistent with the output supply voltage

7.Port spacing:2.54pin

8. Size: 0.8in*0.14in*0.15in

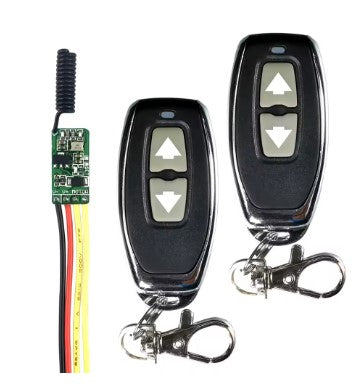

♻️rf Remote transmitter  parameters:

1. Remote distance: Barrier-free 20 meters or more

2. Working voltage: DC 6V

3. battery model: CR2016 * 2PCS

4. Frequency: 433mhz

5. Working current: about 10 mAh

6. Code type: EV1527 / learning code

7. Size: 2.4in*1.13in*0.5in

Visual environment, control distance is about 20 meters.,RF signal can penetrate the wall.

This product uses a power saving program. It is very suitable for battery power.

Standby mode, consumes about 15 mA for 24 hours

Turning into hibernation when standby can be very energy efficient.

Because of this dormant program,Button time must be greater than 0.8 seconds.

If you push the button too fast, you may occasionally lose control.

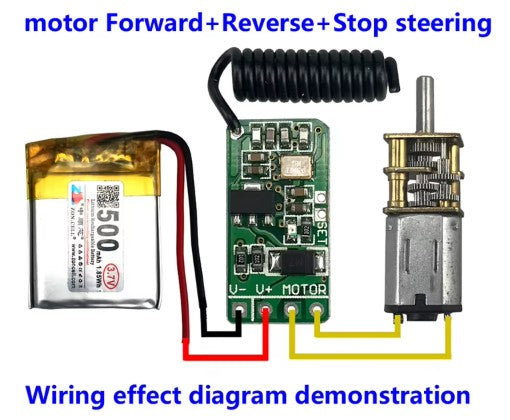

Scope of use:Coil, motor steering, electromagnet, positive and negative pole steering,Power supply positive and negative switching function and switch function

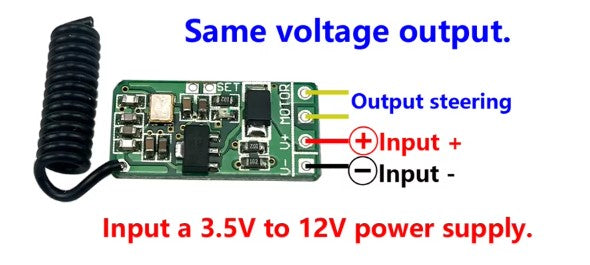

1. output voltage=The input power supply voltage(3.5V to 12V universal)

2. when you use, Module will be a bit hot, That is normal, Don't worry

3.  Starting current is less than 1A,  More than a limited amount of current, Will be power-off protection.
